Clevis Pin

HR Forged snap shackle (Grade 17.4 ph stainless steel) with clevis pin
The plunger pin is set captive into the hook and cannot become detached
Excellent working and breaking loads
Easy to open by pulling the plunger pin (possiblity to attach a lanyard)

Length (mm)              52

Working load (kg)      960

Breaking load (kg)      2000

Weight (g)                  54

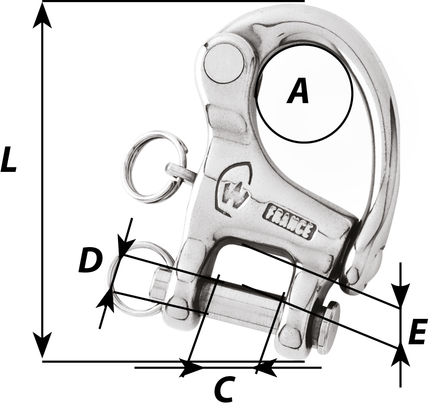

A (mm)                       16

B (mm)                       8

C (mm)                       13

D diameter (mm)        6

E (mm)                       8.1

Other Codes:

2295 with D 52mm

2297 with D 86mm
